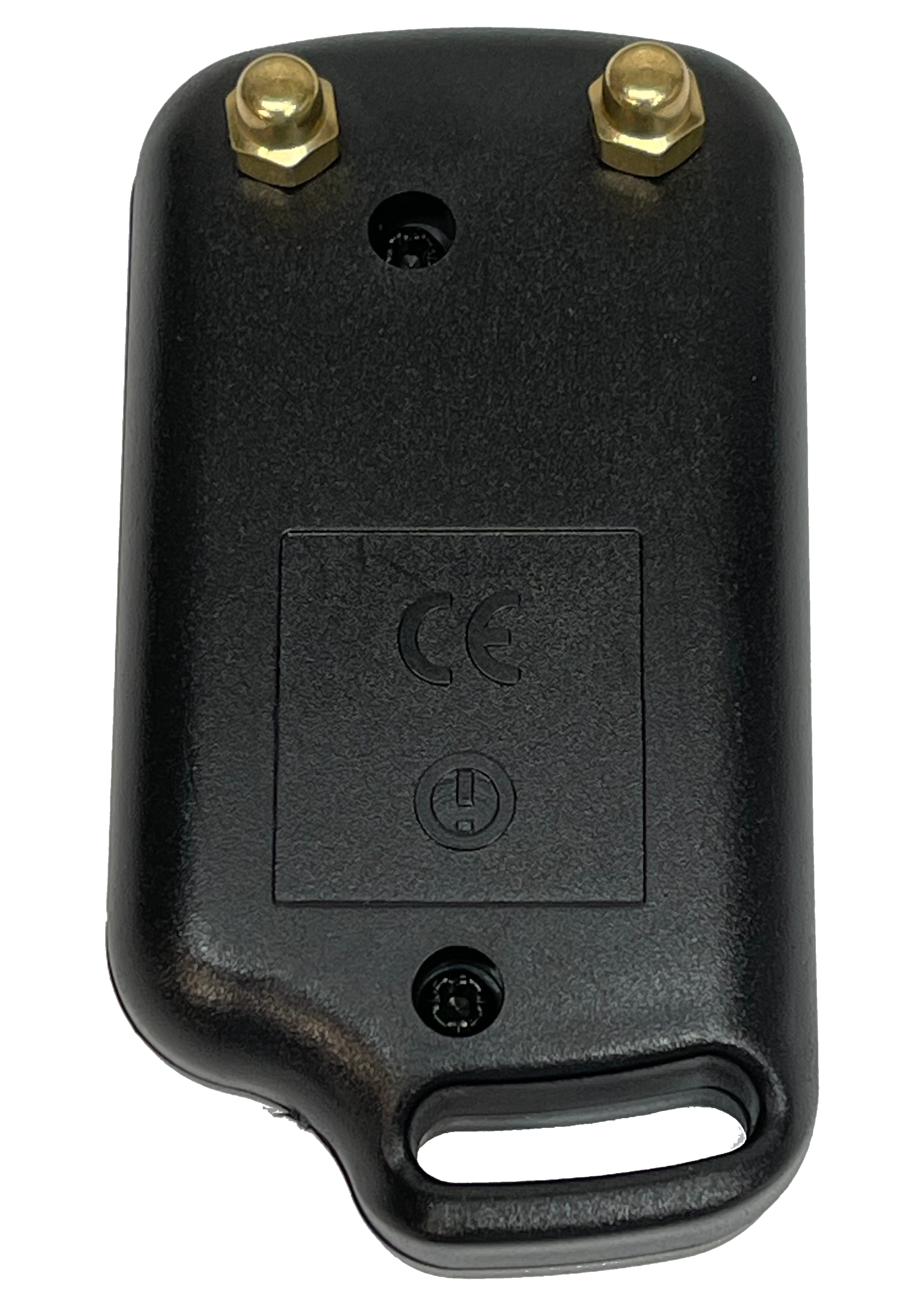

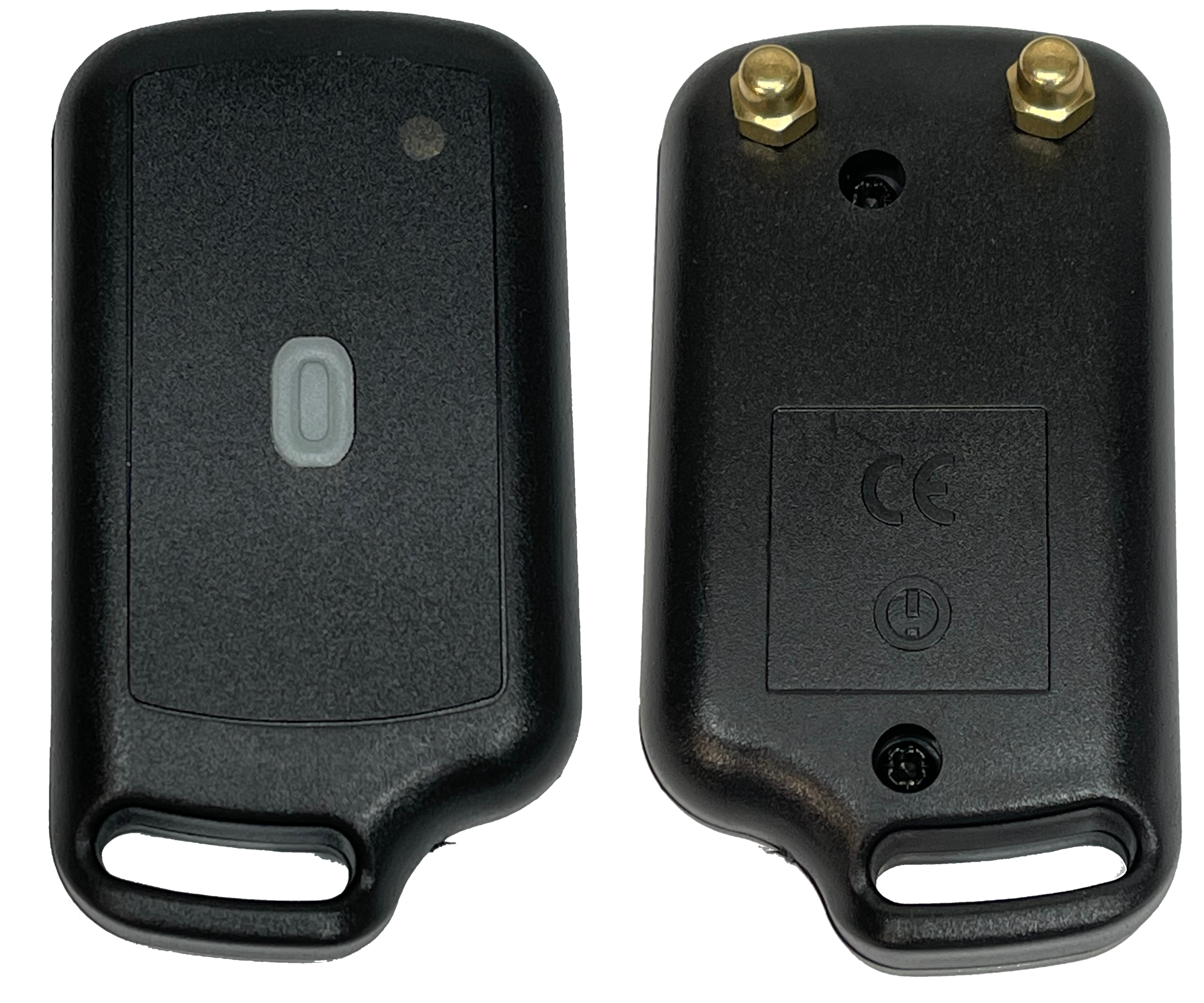

CFCT-FOB Programmable cue tester
The CFCT-FOB is a programmable cue continuity tester. With a range from 3 to 120 ohms in 3 ohm steps.
Rather than simple electrical continuity this measures actual resistance and reports pass or fail with a bright green/red lamp and audible tones.
Weather resistant to IP54, in a practical and small key fob package.
Complete with lanyard for fixing to belt or toolbag.
Good for over 2000 tests and easily replaceable CR2032 battery.
Brass terminals for quick testing of the circuit and no risk of sparking or rusting.
- Resistance check
- 3 to 120 ohms in 3 ohm steps.
Green indication and positive beep when resistance is less or equal to the configured 'pass' ohms.
Red indication and negative beep when resistance is greater than the configured 'pass' ohms.
Configurable using the mode/function button
More than 2000 tests from a single CR2032 battery.
Audible beep can be disabled to be discrete or conserve power for more testing cycles. - Terminals
- Large brass terminals, non-sparking and non-rusting.
Easy operation, unit wakes and begins testing on circuit connection.
- 3v CR2032 battery, user replaceable.
- Testing current is less than 25mA
- Low battery level indication
- Trigger input with local (on-unit) arming.
- Fire, control switches, timed patterns on each trigger input received.
- User programmable sequence on each trigger (mix and match self timed steps too).
- Current triggered: 1 Amp to trigger. Up to 60V DC supported, trigger with a simple 9v battery or use our CFTU-0124 trigger unit for maximum convenience.
- Trigger input is testable up to 50mA even when unit is off.
- Customisable debounce to remove possibility of noisy signals / or increase sensitivity as needed.
- Trigger input becomes a wired disarm input when the unit is controlled via radio.
- Connect to other firing system cues to fire sequences too.
- UV stable, impact resistant polycarbonate enclosure.
- IP66 rated, pressure vented to guard against moisture ingress under atmospheric changes.
- Circuits tropicalised for further moisture protection.
- -20 to +60 degrees celcius, 90% relative humidity non-condensing.
- Set up in the most attrocious weather with no concerns: All season tested.
- Heavy duty spring binding post connection terminals.
- Stainless steel on/off key switch mechanism - suitable for marine environments Severity 1 (EN60068-2-52).
- Integrated mounting feet.
- Internal battery clamping: securely held in place.
- Mount unit in any orientation.
